This electric lifting column is designed with the electric actuator fully enclosed within the column structure, effectively protecting the motor from dust and debris.
Product Description
This electric lifting column is designed with the electric actuator fully enclosed within the column structure, effectively protecting the motor from dust and debris. This design ensures more reliable lifting performance, enhanced protection levels, and significantly extended service life of the lifting system.
Key Applications
Furniture, medical equipment, display cabinets, and other indoor environments requiring low-noise operation and heavy-load capacity.
| Voltage: 12/24/36/48V DC |
| Max Load: 4000N |
| Max Stroke: Customizable ,generally not exceeding 1000mm |

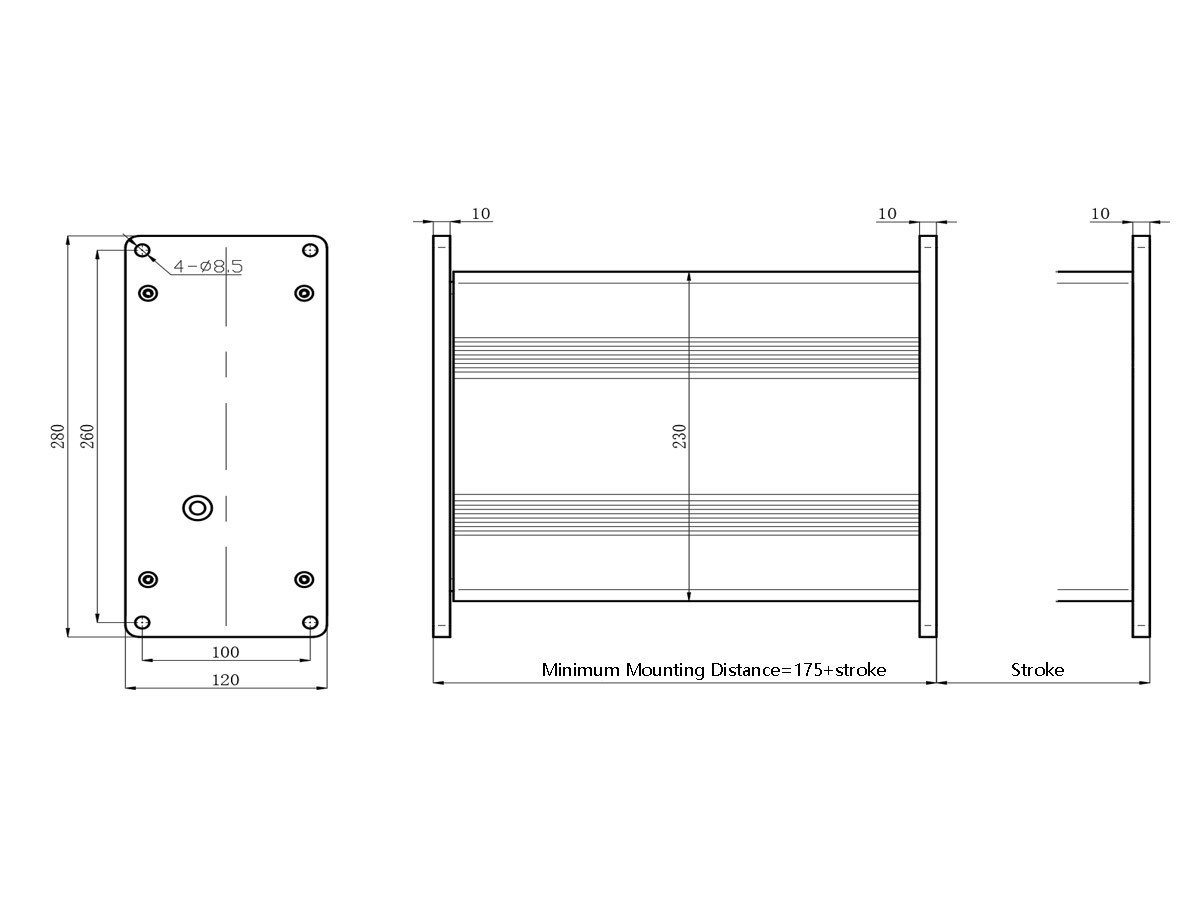

| Minimum Mounting Distance: Stroke+175mm |
| No-load Speed: 5-25 mm/s |
| Protection Level: IP43 |
| Operating Temperature: -15℃~60℃ |
| Noise Level: ≤45 dB |
| Controllers: Wired controller, wireless controller |
| Signal Outputs: Hall sensors, magnetic switches, limit switches |
| Load | No-load Speed | Full-Load Speed |
| 4000N | 5mm/s | 3mm/s |
| 3000N | 8mm/s | 5mm/s |
| 1500N | 15mm/s | 10mm/s |
