| Voltage: 12/24V DC |
| Max Load: 60 N |
| Max Stroke:25~150mm Customizable |
| Working Frequency: 10% |
| No-load Speed： 8~15mm/s |
| Protection Level: IP65 |
| Operating Temperature: -20℃~60℃ |
| Noise Level: ≤50 dB |
| Controller Options: Wired controller, wireless controller, customized controller. |
| Built-in Limit Switches: Non-adjustable |

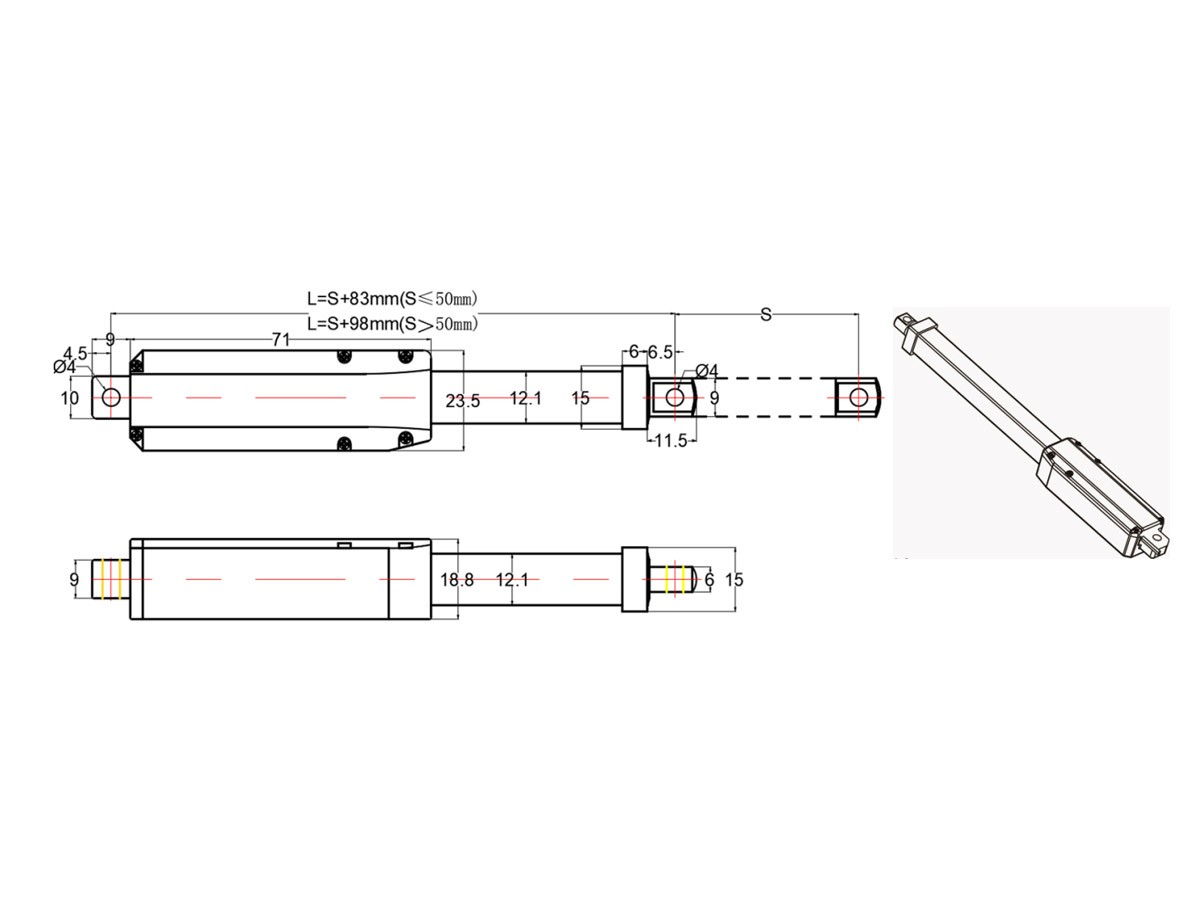

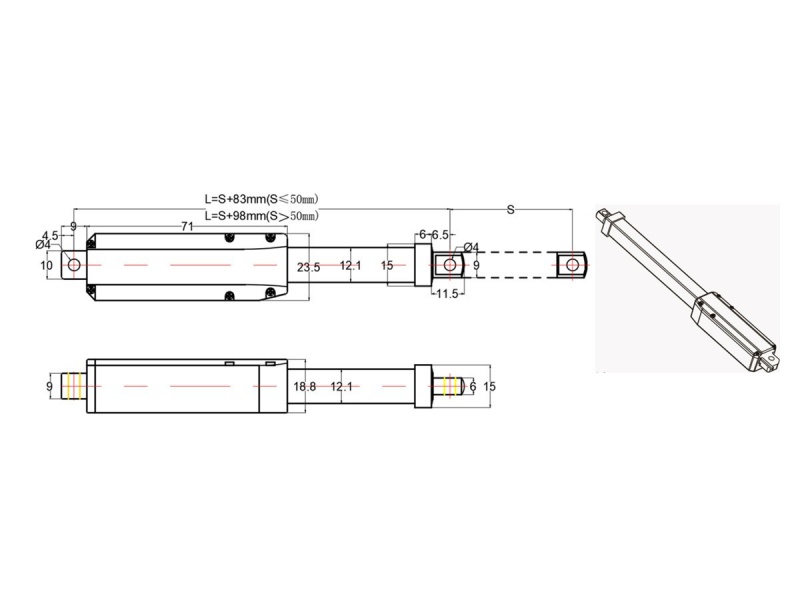

| Standard Stroke | Installation Size | Force | No-load Speed |
| 25mm | 108mm | 60N | 8mm/s |
| 25mm | 108mm | 30N | 15mm/s |
| 50mm | 133mm | 60N | 8mm/s |
| 50mm | 133mm | 30N | 15mm/s |
| 75mm | 173mm | 60N | 8mm/s |
| 75mm | 173mm | 30N | 15mm/s |
| 100mm | 198mm | 60N | 8mm/s |
| 100mm | 198mm | 30N | 15mm/s |
| 150mm | 248mm | 60N | 8mm/s |
| 150mm | 248mm | 30N | 15mm/s |
